motion-sensor

Sonoff SN-ZB03

Using Tasmota and MQTT

MQTT Information Sent to SENSOR

{"ZbReceived":{"0x6841":{"Device":"0x6841","0500?00":"000000000000","ZoneStatusChange":0,"Occupancy":0,"Endpoint":1,"LinkQuality":105}}}

The Occupancy is used for motion detection.

- binary_sensor:

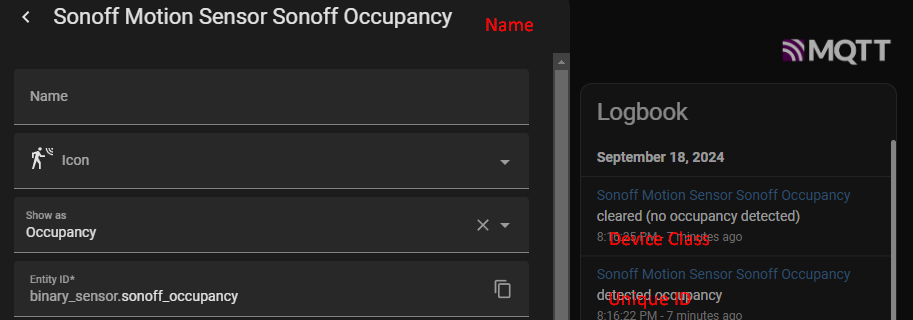

  - name: Sonoff Occupancy
    unique_id: zb_sonoff_occupancy
    object_id: sonoff_occupancy
    state_topic: "tele/bridge_tasmota_2D251C/SENSOR"
    value_template: "{{ value_json.ZbReceived['0x6841'].Occupancy }}"
    device_class: "occupancy"
    expire_after: 86400
    payload_on: 1
    payload_off: 0

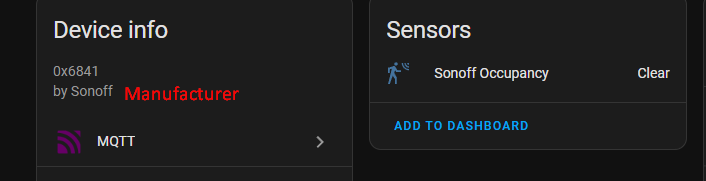

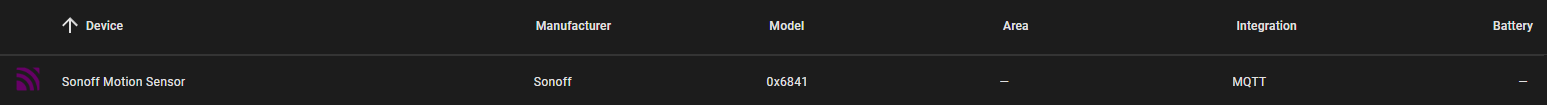

    device: &sonoff_motion_device_info
      identifiers: [sonoff_0x6841]
      configuration_url: http://10.10.120.16:1883
      manufacturer: Sonoff
      model: "0x6841"
      name: "Sonoff Motion Sensor"
    icon: mdi:motion-sensor

The motion sensor is a binary sensor

Since motion is a binary sensor, it needs a payload_on and payload_off. In this case 0 and 1.
