Using tailscale to allow Github action bot to connect to internal network resources.
This is the workflow jobs configuration

jobs:
    tailscale-build:
      runs-on: ubuntu-latest
      steps:

      - name: Tailscale
        uses: tailscale/github-action@v2
        with:
          oauth-client-id: ${{ secrets.TS_OAUTH_CLIENT_ID }}
          oauth-secret: ${{ secrets.TS_OAUTH_SECRET }}
          args: --accept-routes
          tags: tag:ci

Joining tailnets

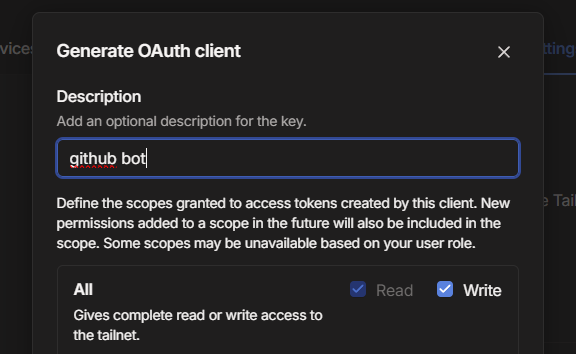

To need create an oauth client and must be tagged. The client should have all read and write permission.

  • then tailscale will give out client id and secret

args: --accept-routes makes subnet routes such as 10.10.120.16 available to the bot

Tags must be defined in ACL controls.

	"acls": [
		// Allow all connections.
		// Comment this section out if you want to define specific restrictions.
		{"action": "accept", "src": ["*"], "dst": ["*:*"]},
	],
	"tagOwners": {
		"tag:ci": ["hukevin69@gmail.com"],
	},
  • the tags are defined in tagOwners, with tag:ci defining the name with email address of who owns the tag
  • once a machine is tagged, to untag it, it must be removed and reauthenticated
