Wireguard¶

Setup Wireguard from scratch on Linux.

sudo apt install wireguard wireguard-tools -y

This documentation will also focus on exposing private LAN devices. It covers IPv4 only.

Architecture¶

While using a fast VPN like CloudFlare WARP will significantly improve bad routes, this only works for services that are exposed on the internet via a port forward (e.g. Jellyfin). Or local services and LAN devices not exposed on the open internet, WARP cannot access it, this is usually the job of tailscale and similar. However, because tailscale is “too good” trying a direct connection, hence the traffic gets throttled. Attempts has been made trying to route tailscale over WARP (which we don’t control) and without substantial testing, it’s not working as expected.

The approach below attempts to connect to a Oracle Cloud Free Tier VPS Oracle Cloud VPS which is fully controllable and unthrottled in order to improve the traffic between home LAN and remote devices. Additionally, this Wireguard tunnel is useful for future CG-NAT situations where a public IPv4 is not possible.

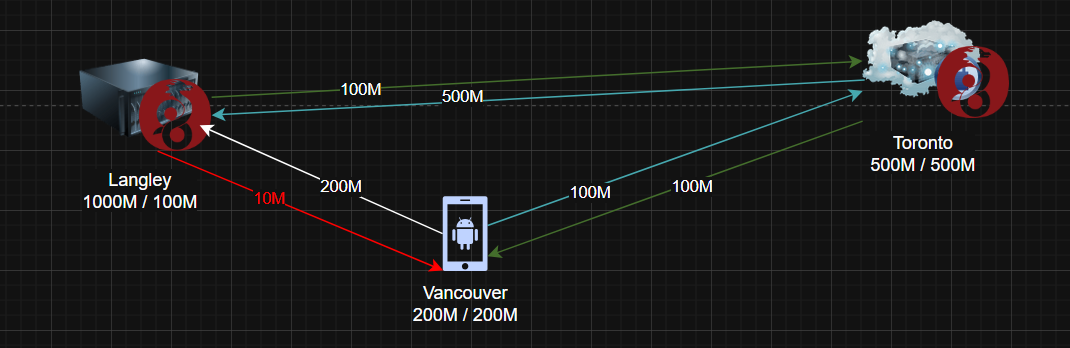

The overall design of this architecture is to fix network throttling and routing problems. However, due to distance, this greatly increases latency.

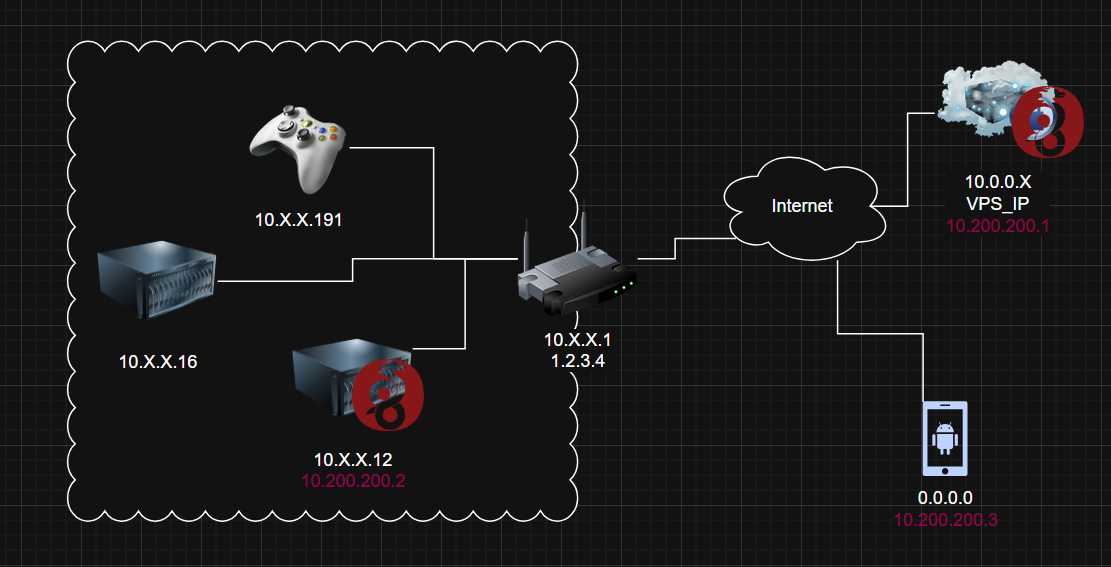

The architecture contains 3 devices to setup

• VPS - handling routing of all traffic
• LAN - act as local subnet router
• Client(s) - mobile phones, laptops out and about

Setup¶

Wireguard configurations are located in /etc/wireguard as wg.conf where wg is the interface name. The command wg and wg-quick are used to manage it.

• Wireguard commands and config files editing requires root account

Prep¶

Must make sure IP forwarding is turned on all machines. Do so by editing the file

sudo nano /etc/sysctl.conf
sudo sysctl -p

net.ipv4.ip_forward=1

Key¶

Wireguard uses asymmetric key cryptography, each client needs to public and private key.

for i in vps lan client; do $(wg genkey | tee $i\_private | wg pubkey > $i\_public); done;

wg genkey | tee privatekey | wg pubkey > pubkey

VPS¶

[Interface]
PrivateKey= # private key of VPS
Address={ipv4} # 10.200.200.1/24
ListenPort=51820
PostUp = iptables -A FORWARD -i %i -j ACCEPT; iptables -A FORWARD -o %i -j ACCEPT; iptables -t nat -A POSTROUTING -o $IF -j MASQUERADE
PostDown = iptables -D FORWARD -i %i -j ACCEPT; iptables -D FORWARD -o %i -j ACCEPT; iptables -t nat -D POSTROUTING -o $IF -j MASQUERADE

# LAN
[Peer]
PublicKey= # public key of LAN
AllowedIPs= # 10.200.200.2/24, or additional networks

# Client
[Peer]
PublicKey=# public key of client
AllowedIPs= # 10.200.200.3/32

• the Address is interface is the subnet of the Wireguard interface, it can be anything as long as it doesn’t conflict
• ListenPort needs to be forwarded in the firewall or it to work
• PostUp and PostDown are commands to execute when the tunnel is setup
• the LAN subnet CIDR goes in AllowedIPs of LAN peer only

Do not forget to replace $IF with the real network interface of VPS

LAN¶

This is the subnet router on the local network

[Interface]
Address = # 10.200.200.2/24
PrivateKey = # private key of LAN
PostUp = iptables -A FORWARD -i wgnat -j ACCEPT; iptables -t nat -A POSTROUTING -o $IF -j MASQUERADE
PostDown = iptables -D FORWARD -i wgnat -j ACCEPT; iptables -t nat -D POSTROUTING -o $IF -j MASQUERADE

[Peer]
PublicKey = # public key of VPS
Endpoint = # VPS IP and ListenPort
AllowedIPs = # VPS Wireguard IP, must be a /24 not /32
PersistentKeepalive = 60

• PersistentKeepalive always send a packet to keep the connection for every interval
• no need to put information of the client, just the VPS

Do not forget to replace $IF with the real network interface of LAN device
Additional iptables rules are required (install if iptables not found). Todo later, make the rule available on startup.

iptables -A FORWARD -i $WGIF -j ACCEPT
iptables -t nat -A POSTROUTING -o $IF -j MASQUERADE

Client¶

Any laptop, mobile phone connecting from outside

[Interface]
Address = # 10.200.200.3/24
PrivateKey = # private key of client

[Peer]
PublicKey = # public key of VPS
Endpoint = # VPS IP and ListenPort
AllowedIPs = 0.0.0.0/0
PersistentKeepalive = 60

• AllowedIPs can also be set to CIDR of LAN subnet and Wireguard interface IP only route local traffic

Use this website to generate QR Code from configuration file.
Use this command to add more clients

sudo wg set wgIF peer $pubkey_of_client allowed-ips $ip # e.g. 10.0.0.2/32

qrencode -t ansiutf8 < /etc/wireguard/wgX.conf

qrencode -t png -o qrcode.png -r /etc/wireguard/wg-client.conf

Usage¶

Use wg-quick to start the service in VPS and LAN

wg-quick up wg # name of WG .conf file in /etc/wireguard interface

alias wgreset="wg-quick down wg && wg-quick up wg"

Port Forwarding¶

The commands for opening ports for firewall-cmd

 sudo firewall-cmd --add-port 1234/udp --zone=public --permanent
 sudo firewall-cmd --reload

• replace the port with the ListenPort of Wireguard

Here are some of the recommended ports; however, these would be futile again DPI.

• 3478/UDP - STUN protocol, usually for video meeting apps like Zoom, Teams
• 443/UDP - QUIC protocol for web browsing
• 53/UDP - Domain Name System
• 123/UDP - Network Time Protocol

Additional firewall-cmd commands may be needed. Reference: tailscale

firewall-cmd --permanent --add-masquerade
sudo firewall-cmd --add-interface=$WGIF --zone=trusted --permanent
sudo firewall-cmd --reload
