Apache Guacamole¶

Install¶

Credit from another Github project.
https://github.com/boschkundendienst/guacamole-docker-compose
The Docker compose configuration is too long, it will be added to a separate gist.
https://gist.github.com/vttc08/3b866ff4f71ede8d9bb409e58376402e
There are 3 components that needs to be installed

• guacd - backend
• guacdb - Postgres Database
• guacamole - app/frontend

Configuration¶

Configure time zone for all containers
Ensure the .env file has the following content, this will be loaded by env_file

DOMAIN_NAME="" # domain name of Guacamole, without the BaseURL
GUACAMOLE_STATE="" # used for Authelia authentication
POSTGRES_PASSWORD='' # postgres password

# guacamole
      RECORDING_SEARCH_PATH: /record
      WEBAPP_CONTEXT: /remote

• SEARCH_PATH - path for recording, allow Guacamole to view logs of connections
• WEBAPP_CONTEXT - subfolder/baseURL for reverse proxy

Volume/Network¶

The volumes guacdb_postgres and guacamole_recording needs to be named volumes because of host and container permissions. This script also needs to be run to fix permission, if the volume is guacamole_recording

docker run --rm -v guacamole_recording:/path busybox sh -c 'touch /path && chmod a+w /path'

volumes:
  guacdb_postgres:
    name: guacdb_postgres
    driver: local
  guacamole_recording:
    name: guacamole_recording
    driver: local

networks:
  guacamole_network:
    name: guacamole_network
    driver: bridge
  public:
    name: public
    external: true

• guacamole_network - network used for 3 containers communication
• public - network for reverse proxy is needed

Prepare¶

The container from boschkundendienst provided a prepare.sh script to initalize the database and make folder, the scripts has been modified and is upload to Gist.

Usage¶

App Configuration¶

Configuration is done in WebUI

While it’s possible to WebUI for config, it’s more convenient to have a script that modify the database and sync it with ssh_config. The script and associated SQL files will be in the gist.

Tabby Incompatibility¶

Because Tabby uses PS1 from shell variable for seamless SFTP, it will show some weird like debian@laptopser:urrentDir=/home/debian, to workaround this. Use the GUAC environment variable and load the normal PS1 is connecting via guacamole

if [[ "$GUAC" == "1" ]]; then
   PS1='${debian_chroot:+($debian_chroot)}\[\033[01;32m\]\u@\h\[\033[00m\]:\[\033[01;34m\]\w\[\033[00m\]\$ '
   alias eecho='printf "\n%.0s" {1..30}'
fi

export GUAC=1 && bash

Protocols¶

VNC is possible but unusable on mobile so it’s not tested further. RDP will be reserved for future testing.

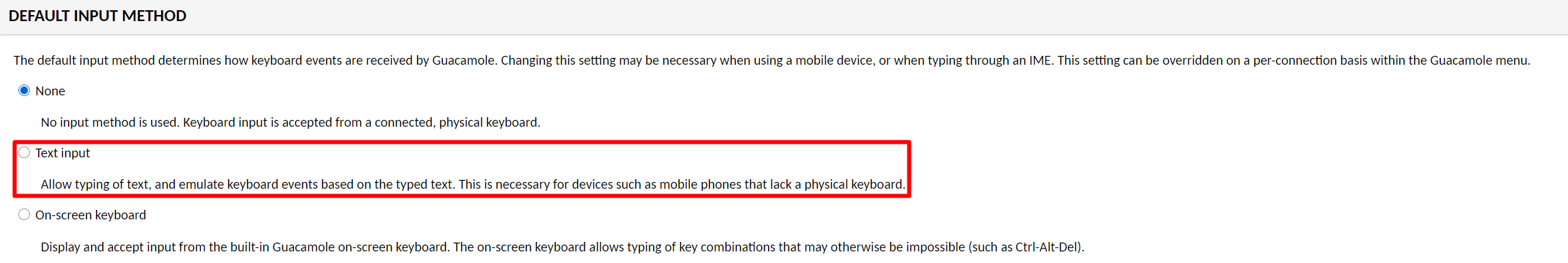

As for SSH, it works fine on desktop, but on mobile, its recommend to set default input method to Text input. However, in this mode, when the keyboard is activated, the SSH window will scroll up and not possible to scroll, thus it’s unable to see the content of SSH messages on top.

This is fixed using an alias that echo 30 empty lines that brings the terminal down, it works even when blindly typing.

   alias eecho='printf "\n%.0s" {1..30}'

Recording¶

This is the configuration that is working for recording, from configuration, the recording path is set to /record. Use this Docker command to fix permission issues, it will cause no recordings, this is also included in prepare script.

docker run --rm -v guacamole_recording:/path busybox sh -c 'touch /path && chmod a+w /path'

${HISTORY_PATH}/${HISTORY_UUID}

Sharing¶

Sharing are determined by profile, it can be read only or collaborative. The script on Gist setup each connection with 2 sharing profile, read only and normal. This give a link and anyone can access it, however, the link will expire once the session is disconnected and a new link need to be generated.

Access¶

This configuration allows both Authelia OIDC and local access or default login (as long as guacadmin is disabled).

Reverse Proxy¶

In Nginx Proxy Manager.

location /remote/ {
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection $http_connection;
    include /snippets/proxy.conf;
    proxy_pass http://10.10.120.12:8022/remote/;
}

• no Authelia snippet is needed since Authelia is used for OIDC not basic login
• this allows serving guacamole on a custom subpath /remote

SSO¶

These are all the environment that are needed for main guacamole container for OIDC, assuming the .env is loaded.

      EXTENSION_PRIORITY: '*, openid'
      OPENID_AUTHORIZATION_ENDPOINT: 'https://auth.${DOMAIN_NAME}/api/oidc/authorization?state=${GUACAMOLE_STATE}'
      OPENID_JWKS_ENDPOINT: 'https://auth.${DOMAIN_NAME}/jwks.json'
      OPENID_ISSUER: 'https://auth.${DOMAIN_NAME}'
      OPENID_CLIENT_ID: 'guacamole'
      OPENID_REDIRECT_URI: 'https://${DOMAIN_NAME}/remote'
      OPENID_USERNAME_CLAIM_TYPE: preferred_username
      OPENID_GROUPS_CLAIM_TYPE: groups
      OPENID_SCOPE: openid profile groups email

      - id: guacamole
        client_name: Guacamole
        client_secret: '$plaintext${{ env "GUACAMOLE_SECRET" }}'
        public: false
        authorization_policy: 'admin_only'
        redirect_uris:
          - 'https://{{ env "DOMAIN_NAME"}}/remote'
        scopes:
          - 'openid'
          - 'profile'
          - 'groups'
          - 'email'
        response_types:
          - 'id_token'
        grant_types:
          - 'implicit'
        userinfo_signed_response_alg: 'none'

SSO Behavior¶

• by default, Authelia logged in users will have no permissions and cannot be managed by guacamole
• if the user need admin, need to configure guacamole and add an admin user before logging in
