Speedtest

OpenSpeedTest

Docker Apps Rating
U/GID TZ SSO/Users Existing FS Portable Subfolder Mobile
❎ ✅ ✅🤵 ✅ n/a ✅ ✔

Install

Docker-compose
https://github.com/openspeedtest/Speed-Test

services:
  speedtest:
    restart: unless-stopped
    container_name: openspeedtest
    ports:

    - '3000:3000' # HTTP Port
    image: openspeedtest/latest
    environment:
      - TZ=America/Vancouver

The changed items are TZ environment variable. Everything else is from documentation. Default port is 3000.

Post-Install

To serve OST from a subpath, e.g. my.dynu/speedtest. Need to move files in the container, where openspeedtest is the name of the container.

docker exec -it openspeedtest mkdir -p /usr/share/nginx/html/speedtest
docker exec -it openspeedtest cp -r /usr/share/nginx/html/assets /usr/share/nginx/html/downloading /usr/share/nginx/html/upload /usr/share/nginx/html/index.html /usr/share/nginx/html/50x.html /usr/share/nginx/html/speedtest

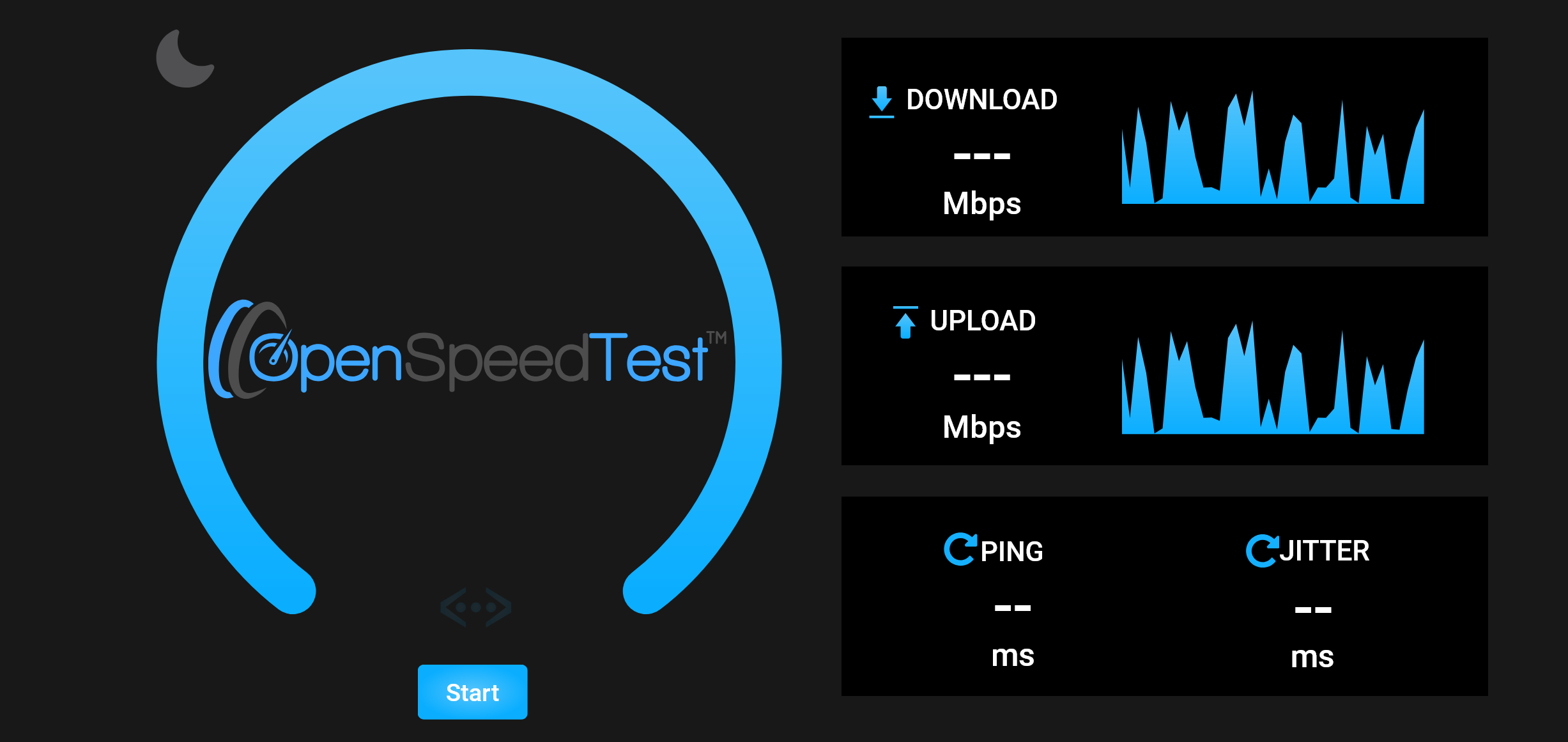

Usage

OpenSpeedTest comes with additional URL parameter options not found in Librespeed.

?T=D // download only
?T=U // upload only
?R=5&T=U // wait for 5 seconds before upload only

Reverse Proxy

The reverse proxying is straightforward.
If using Authelia, NPM config must be set to force HTTPS.
Authelia snippet

include /snippets/authelia-location.conf;
location /speedtest/ {
  include /snippets/proxy.conf;
  include /snippets/authelia-authrequest.conf;
  proxy_pass http://openspeedtest-ip:3000/;
}

Librespeed

Install

Docker-compose
https://github.com/librespeed/speedtest

services:
  speedtest:
    container_name: librespeed
    #image: ghcr.io/librespeed/speedtest:latest
    image: vttc08/librespeed-realip
    restart: unless-stopped
    environment:
      MODE: dual
      IPINFO_APIKEY: ""
      DISTANCE: "km"
      TZ: "America/Vancouver"
    volumes:

      - ./servers.json:/servers.json
    ports:
      - "3001:8080" # webport mapping (host:container)

Follow the documentation. Changed container name to librespeed, the MODE to dual, setup both frontend and backend, added timezone settings. The volumes include servers.json which is used for multiserver. For ipinfo API key, create a token https://ipinfo.io/dashboard/token. Librespeed now uses a custom image which modify Apache configuration and trust the reverse proxy.

Post-Install

Uses the same command as OST to serve librespeed from subdirectory for reverse proxy.

docker exec -it librespeed mkdir -p librespeed
docker exec -it librespeed cp -r backend/ favicon.ico index.php speedtest.js speedtest_worker.js librespeed/

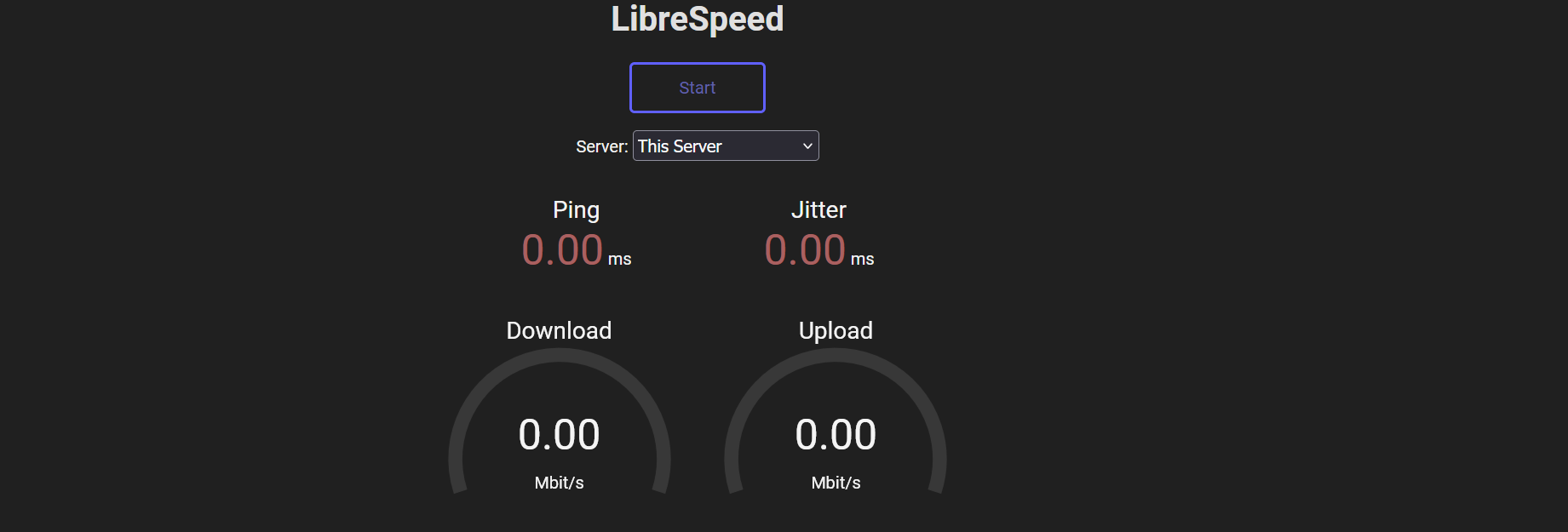

Usage

Librespeed do not support URL parameters, just navigate to site and start test.

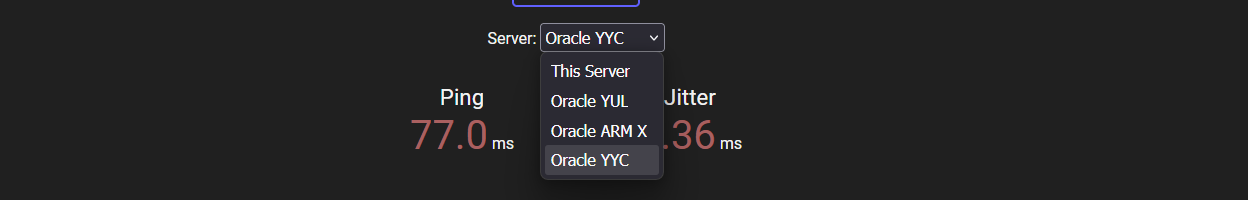

Multiserver

Librespeed support setting up multiple backends, via servers.json. An array of servers and URLs. It will provide a list of selections. The backend server must be publicly accessible either by port or reverse proxy.

[
  {
    "id": 1,
    "name": "Home",
    "server": "http://10.10.120.12:3001/",
    "dlURL": "garbage.php",
    "ulURL": "empty.php",
    "pingURL": "empty.php",
    "getIpURL": "getIP.php"
  },
]

The other servers must be installed in backend mode, MODE=backend environment. The only thing that needed to be changed is the server and incrementing the ID, everything else remains the same.

HTTP/HTTPS

When accessing the site via HTTP, e.g. 10.10.120.12:3001, only the servers that is http can be selected. Vice versa for HTTPS. Since HTTP frontend is not exposed, when needing to test Oracle Cloud, even if the backend is publicly exposed, VPN is needed to access the HTTP frontend first.

HTTPS Slowdown

When using Caddy on Oracle Cloud VPS with ARM, the speedtest result is significantly slower.

Reverse Proxy

The procedure is same as OST. Nginx custom snippet. Authelia works as expected.

location /librespeed/ {
  include /snippets/proxy.conf;
  include /snippets/authelia-authrequest.conf;
  proxy_pass http://10.10.120.12:3001/;
}

For documentation only. The remote VPS also have librespeed installed but have Caddy as reverse proxy. Caddy is used for HTTPS only.

        @librespeed host librespeed.{$WEBSITE}
        handle @librespeed {
                reverse_proxy librespeed:8080
        }

  • uses container networking and addresses by container:port
  • when used as such, change the WEBPORT environment variable, port mapping is not longer relevant

RealIP

The following Docker modification makes Librespeed Apache show the original IP address from reverse proxy. Otherwise it will show the gateway IP of the specific Docker network its in.

FROM ghcr.io/librespeed/speedtest:latest

RUN a2enmod remoteip && \
    echo 'RemoteIPHeader X-Forwarded-For\nRemoteIPTrustedProxy 172.18.0.1' > /etc/apache2/conf-available/remoteip.conf && \
    a2enconf remoteip

  • assuming the IP of Docker network is 172.18.0.1 otherwise use a CIDR range

Build and publish the container image (support both AMD and ARM).

docker buildx create --use --name multiarch-builder
docker buildx inspect --bootstrap
docker buildx build --platform linux/amd64,linux/arm64 \
  -t vttc08/librespeed-realip:latest \
  --push .
